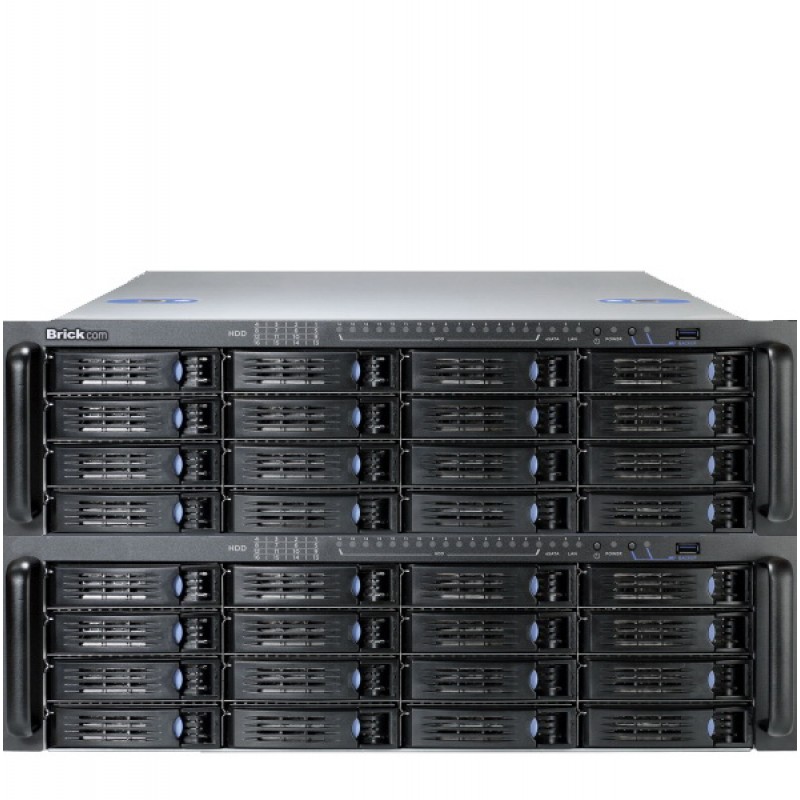

Büyük resim için tıklayın
256Ch. Recording Capacity
Max.12Megapixel Resolution Recording
Max. 512ch. Upgradable
Max. 512ch. Virtual Stack Capacity
Virtual Stack Layer
1300Mbps Network Camera Recording
32x Internal HDD Capacity (Max. 384TB)
JBOD, RAID0, RAID1, RAID10, RAID5 and RAID6
Failover Clustering (N+16)
Disk Volume Grouping
4K Hardware Decoding
64ch. Real Time Local Display Liveview / Monitor
Multilayer E-MAP
| GENERAL FEATURES | |
| Operating System | Linux |
| Inputs | 256ch. (Video & Audio) |
| Compatibility | Support Brickcom cameras, 150+ Manufacturers and 3500+ Models by fully API and ONVIF Profile S compliant |
| Local Display | 2xHDMI (4K), 2xVGA (1080P) |
| Live Performance | [Local monitor] 4K UHD, 4MP(360fps), Full HD(900fps), HD(1200fps), D1(1600fps) |
| Multi-Channel Display | 1/3/4/5/8/9/10/12/16/20/25/30/36/42/49/56/64 & 5+1/12+1, 7 Zone ROI |
| System Control | Mouse, Web GUI, Controller Keyboard |
| SYSTEM PERFORMANCE | |
| Video Compression | H.265 / H.264 / / MPEG4 / MxPEG / MJPEG (Depend on Models) |
| Video Analytics | Non Support |
| Recording Mode | Event / Schedule/ Always / Manual |
| Record Resolution | CIF ~ 12MP (Record & Playback) |
| Recording Bandwidth | 1024Mbps |
| Total Bandwidth | 1300Mbps |
| NVR Failover | N+16 |
| Backup Server Support | Support |
| Edge Backup Support | Support |
| Built-in Relay Server | Support |
| UPS Integration | UPS low power warning feature |
| Backup Modes | USB / Local / NAS / E-Sata / Backup Server / Edge Backup |
| Search Modes | Smart Search/ Date & Time(Calendar)/Channel/Event/Log List |
| Smart Search | Motion Detection, Foreign Object Detection, Missing Object Detection, Camera Tampering Detection, Lose focus |
| Playback Modes | Local / Remote / Instant Playback / Frame by Frame Playback / Multi-NVR Playback / ROI Playback (max. 7 ROI zone per camera) |
| Event Recording | Alarm Input/Video Lost/Camera Events(Sensor, MD, Video analytics, etc.)/NVR Events/Storage Events/ |
| Event Action | Buzzer Alarm/Alert Sound/Event Log/Video Pop-out/Highlight Video/Event Recording/E-Mail/SMS/FTP/SNMP Trap/PTZ Preset/Trig Camera digital out/Trig Horn Speaker |
| Simultaneous Playback | Max. 16CH (Local Monitor, Web GUI, CMS) |
| Fisheye Dewarping | Generic Fisheye/Immervision Dewarping (Web, CMS) |
| Watermark | Real-Time Digital Watermarking |
| E-Map | Multi-layer Maps, Include Pop-out Event Window and Event Log History |
| Sensor I/O Ports | 8/4 (NO/NC selectable) |
| Audio In | Non Available |
| Audio Out | Non Available |
| Audio Compression Format | Selectable G.711 ,RAW_PCM, G.722.1, G.726, MP2L2 (Depend on Models) |
| Audio Communication | Bi-directional (2-way via USB Adapter) |
| STORAGE | |
| Internal HDD Tray | 32xHDD (Max 384TB, Non-RAID Mode) |
| Storage Capacity per HDD | Each Ports 12TB |
| Internal HDD Capacity | HDD Not Included |
| Storage Expansion | 2 x eSATA Port |
| Camera Group Recording | Assign video keeping days for each camera by categorizing cameras in groups (storage days) |
| Capacity Management | Automatic Recycle by Percertage / Keep Video for Certain Days |
| Raid | JBOD, RAID0, RAID1, RAID10, RAID5 and RAID6 (Optional) |
| NETWORK | |
| Ethernet | 4x RJ-45 (100/1000BASE-T) |
| Poe Ethernet | Non Poe |
| Poe Budget | Non Poe Budget |
| Supported Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, DNS, DDNS, UPnP, FTP, SMTP, SNMP, SSL, TLS, PPoE, SMTP, ONVIF (Profile-S), API |
| Network Security | HTTPS(SSL) login authentication, IP address filtering, User Access Log, 802.1x, Encryption, SSL, TLS, Random Password sent by Email, Account Expiration by assigning a specific date, Admin auto logout by time, User limitaton by number of access |
| Switch Management | Manage Brickcom Switches via NVR (Port & PoE Management) |
| Maximum User Access | 12 users at Unicast Mode / 20 users at Multicast Mode |
| SOFTWARE | |
| Log Record | Max. 50,000 (Hardware log, System log, event log, current user log, historical user log and file access log) |
| Free Bundle Software | Free Bundle CMS Software |
| Web GUI Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| OS Compatibility | Windows 7/8.1/10, Mozilla Firefox, Internet Explorer, MS Edge Safari, Google Chrome, Opera, Apple Safari, |
| Mobile Compatibility | Android, IOS, Windows Mobile |
| MECHANICAL | |
| Indicator Leds | Front: Power led, 16x HDD Status leds, 2x E-Sata leds |
| Input Connectors | 10x USB 2.0, 4x LAN, 4x eSATA, 2x VGA, 2 HDMI, 8x AIarm In, 4xAlarm Out, 2x Ground |
| Material / Color | Aluminum / Metalic Dark Gray |
| Working Temperature | -10°C ~ 45°C (14°F ~ 113°F ) Less than 90% RH |
| Dimensions (WxH) | 133.4(H) x 481(W) x 551.5(D) mm |
| Weight | Approx. 14.3Kg (31lb, HDD not included) |
| ELECTRICAL | |
| Input Voltage | AC110/220V ±10% |
| Power Consumption | Without HDD: Max. 64W, With HDD: Max. 152W (with 16 HDD) |
| CERTIFICATES & WARANTY | |
| Certificates | FCC/CE |
| Waranty | Limited 24 months warranty / Extended waranty up to 60 monts (with VUL-NVR-01 licence pack) |
